Water Saving Irrigation System for Greenhouse Growing/Cooling

Size:Large
Type:Multi-Span Agricultural Greenhouses
Cover Material:Pc Sheet
Model Number:Huijing greenhouse
Place of Origin:Shandong, China
Brand Name:Huijing
Suitable Area:Tropical Countries and sub-tropical Countries
Steel Material:Hot Galvanized Steel Pipe
Span Width:6m/6.2m/6.4m/8m/9.6m/10.8m/12m
Section:4 or 5 m,customized
Gutter Height:3-5m, customized
Top Height:5.5-7.5m, customized
Ventilation:Roof vents/Side vents
Optional system:Cooling System.irrigation System.ventilation.etc

working principle:
According to the natural phenomena:"heat is absorbed when water is evaporated; and efficiency of evaporation depends on the evaporation area." When hot air passed through evaporative cooling pad, heat is largely absorbed by water evaporation. Thus, temperature reduction is achieved.
Detailed product description
Our products have widely used in poultry, greenhouse, animal husbandary and livestock field.
1) corrugated paper with the spatial crossing-link technology, ensuring high-absorb ability.
2)high-water resistance, economic and durable.
3)low energy consumption, just one-tenth of traditional air conditioner.
4)do not contain harmful chemical elements, environment-friendly.
5)Galvanized, aluminum fram and plastic-steel are optional.

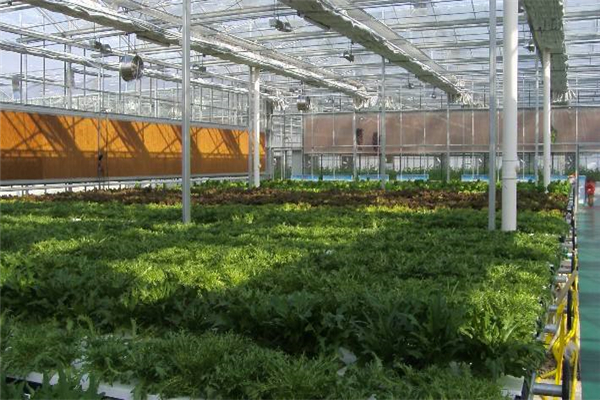

11

Standard type wet curtain characteristic :

1.the use of polymer materials and space cross-linking technology, high water absorption, high water resistance, mildew resistance, high cooling efficiency, long service life and so on;

2.evaporation cooling efficiency of more than 80%;

3.natural water absorption, rapid diffusion speed, lasting efficiency,

4.free of allergy substances, green, Environmental protection, safety, energy saving and economical application.

Standard type wet curtain type: 5060/5090/7060/7090

排气扇

Specifications:
type:7090,7060,5090
Color:brown or customized
Frame:stainless steel or aluminum alloy
Thickness:10mm or 15mm
Material:wood pulp paper

H: high W: width D: depth H:wave height   α:wave angle β:wave angle

7090
H(mm) 1500/1800/2000and so on
W(mm) 600
D(mm) 100/150
H(mm) 7
α(mm) 45
β(mm) 45

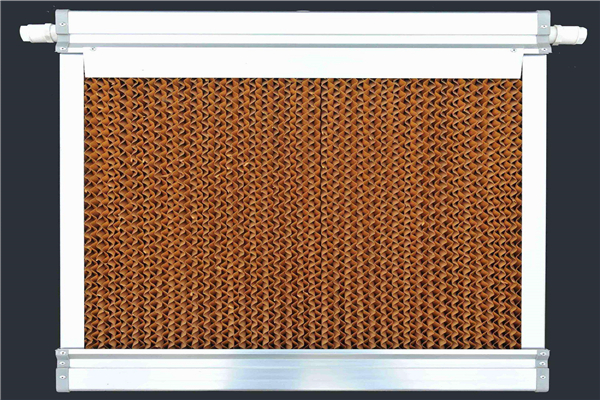

22

Performance characteristics

1.High water absorption

2.High efficiency of evaporation and cooling

3.High strength, no deformation

4.Positive, negative pressure device

5.Durable

6.Energy saving, environmental protection

7.Easy to install

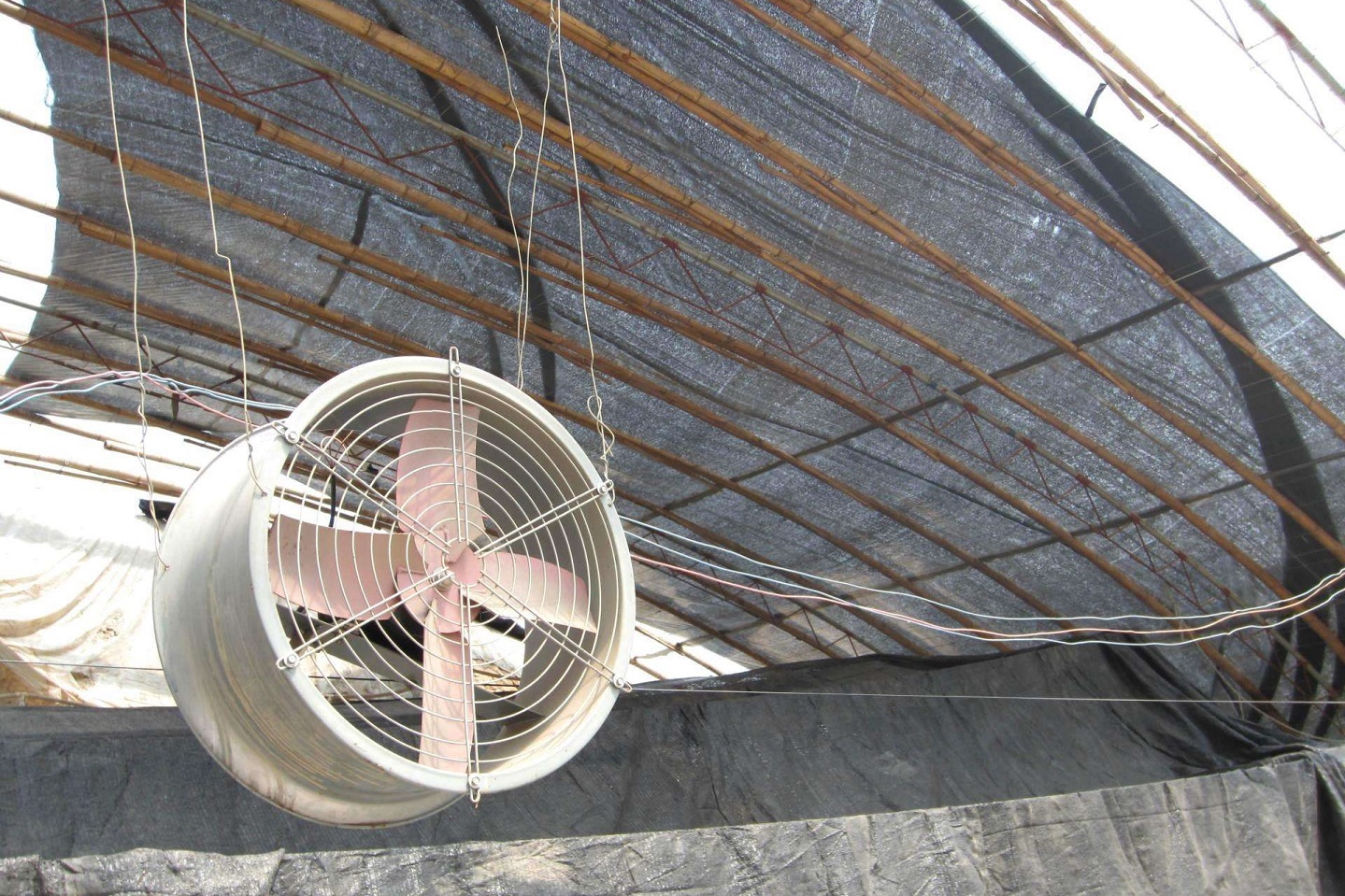

风机4
