Greenhouse Exhausted Fan Central Air Cooling System

Size: Large, 1378x1378x400mm
Cover Material: Aluminium Frame
Name: Greenhouse exhausted fan central air cooling system
Product type: Exhaust Fan
Fan type: Aixal Fan 6-blade Aluminium Alloy
Motor: Shaded-Pole Motor
Rated voltage: AC 220/380V
Usage: Cooling System
Packaging Details: in wooden case of greenhouse cooling systems

  • HUIJING GREENHOUSE

Greenhouse Exhausted Fan Central Air Cooling System

The cooling fans' design and fabrication have maximum theoretical efficiency and very good over loading characters and can adapt to serious environment and ensure the top feasibility. All the blower fans used in tropic region are of IP55 standard and F insulation level.

The adjustment of loosing and tightening the V type belt is very simple. Only to adjust the adjustable bolt in the air input side is okay, without dismantling other parts.

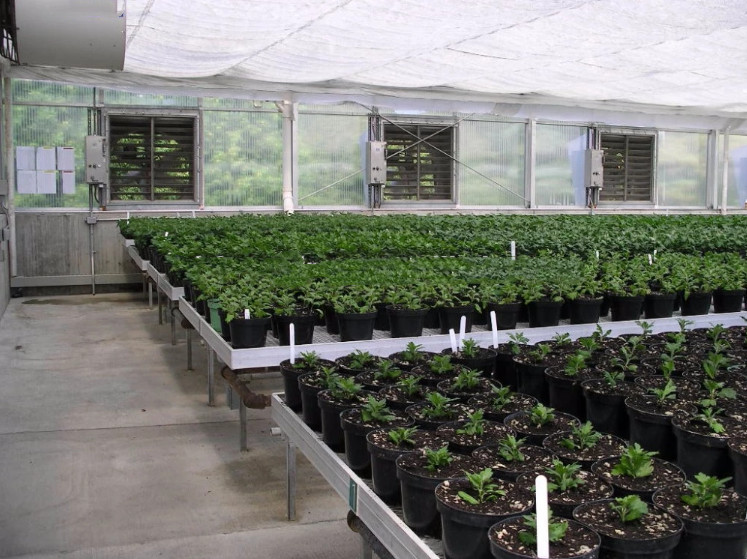

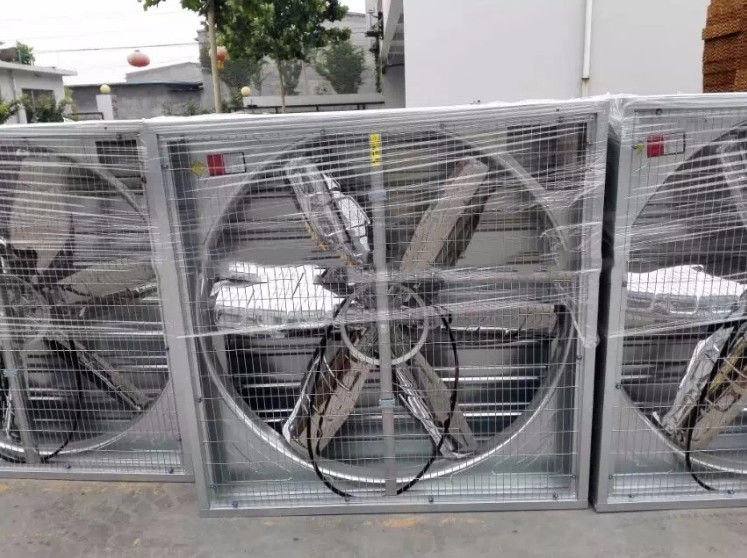

1587888275(1)1587888332(1)

Features

1)Good cooling effect and low running cost.
2)Indoor air is fresh and moist to benefit plant growth, and better effect by installing shading system.
3)Forced ventilation, and reduce indoor humidity.
4)Used with cooling pad can have a better cooling effect

5)The six-impeller are made up of aviation aluminum-magnesium alloy, with light weight, high intensity and good toughness

6)The central driving belt pulley is only supported by a ball bearing, and the special structure has been recognized by the clients.
7)The shutter can proof wind, dust and rain.

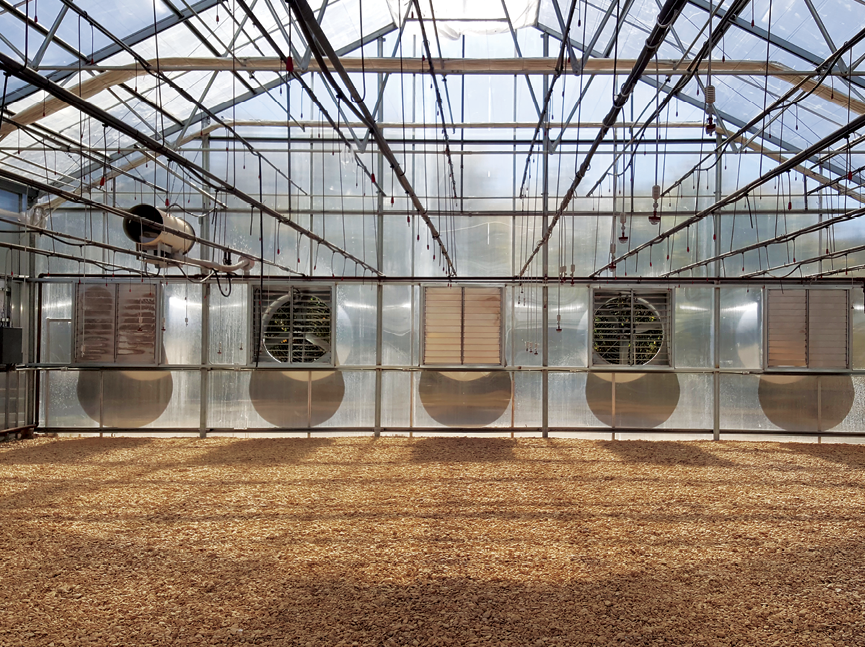

exhaust-fans1_fmt


Technical Parameters

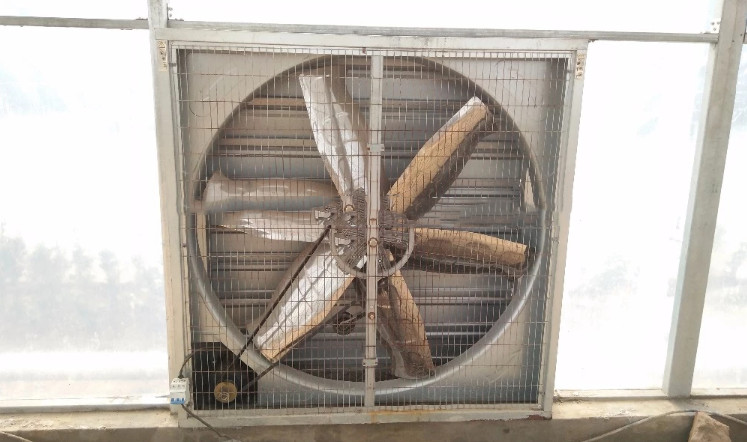

1587888478(1)

Model
Power
Revolution Speed
Working Voltage
Overall Size
Weight
F1.1
1.1KW
440n/min
3phrase 220V/380V
1378×1378×400mm
85KG
F0.75
0.75KW
450n/min
3phrase 220V/380V
1220×1220×400mm
65KG
F0.55
0.55KW
450n/min
3phrase 220V/380V
1060×1060×400mm
55KG

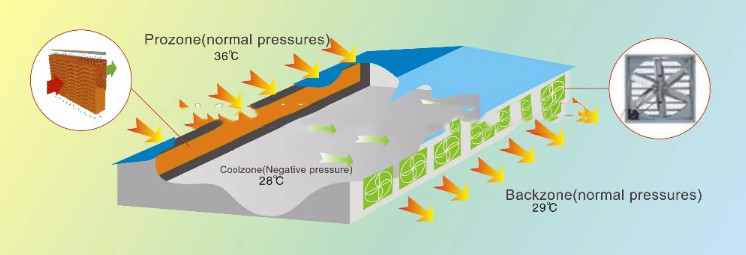

Working Principle:

When the water cross the cooling pad, the water become water film on the surface of the pad. The water film exchange heat with the passing air and evaporate into the air. As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.

1587888572(1)

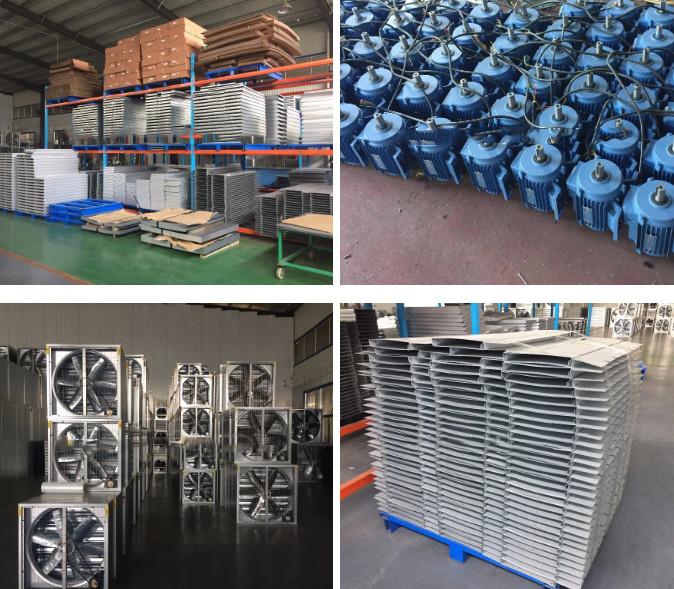

Packing & Delivery

1587888644(1)
