Factory Direct Supply Watering Drip Auto Greenhouse Irrigation System

Product name: Drip Irrigation System
Material: Plastic,LDPE
Application: Agriculture Drip Irrigation Pipe System
Diameter: 12mm 16mm 20mm
Working Pressure: 3.0 KPa
Drip hole spacing(cm): 0cm-100cm
roll length: >100 m or customized
Usage: farmland,Greenhouse
Thickness: 0.5mm-2mm
Flow rate(L/H): 1-6L
Packaging Details: Packing in rolls with plastic film cover
Availability:
  • HUIJING GREENHOUSE

1587879219(1)

Irrigation is the artificial application of water to the land or soil. It is used to assist in the growing of agricultural crops, maintenance of landscapes, and revegetation of disturbed soils in dry areas and during periods of inadequate rainfall. Irrigation system can be divided into two types, drip irrigation and sprinkler irrigation.

Drip irrigation is the most effective way of water-saving irrigation for drought and water shortage area at present. The utilization rate of water is up to 95%. And it can be applied to fruit trees, vegetables, cash crops and greenhouse irrigation. It also have many other advantages such as water saving, irrigation uniformity, energy, soil and terrain adaptability, convenient farm work...etc.

Drip irrigation system is a best way to keep the plants hydrated and save the water ,it be used widely around the word ,especially in Africa or other Arid and water-scarce areas .

Drip irrigation is the favorite ways for farming to grow the vegetable and fruits.it’s very cheap and easy to install .So ,it’s be used widely around the world.



Diameter:  12, 16, 20, 22mm
 Wall thickness:  0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm
 Drip Space:  10cm, 20cm, 30cm, 40cm, 50cm, 60cm
 Pressure:  0.8Bar-1.0Bar
 Flow Rate:  1.38L/H, 2.0L/H, 2.7L/H
 Roll Length:  2000m/roll, 1000m/roll

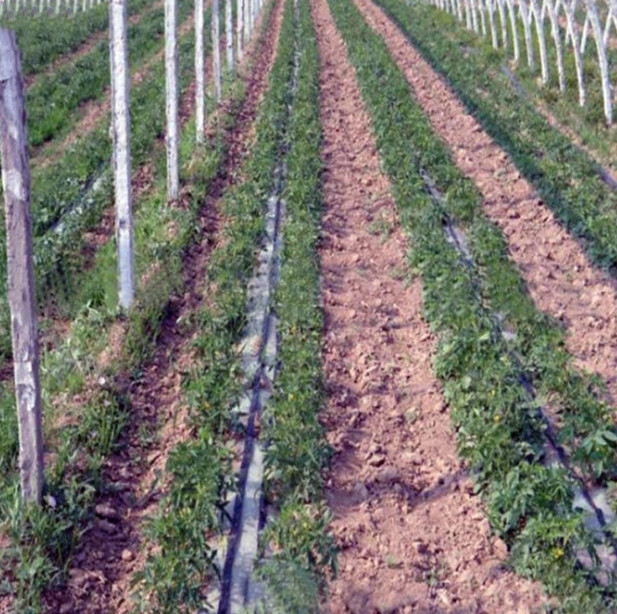

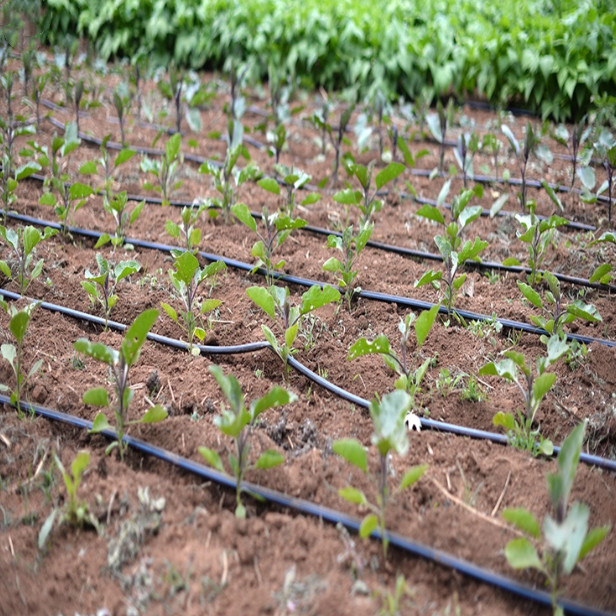

1587879478(1)1587879496(1)

Features

Injection-molded drippers are welded inside the seamless tubing for strength in the field.

Seamless construction permits high flushing pressure.
Suitable to annual crops by its accurate equalized irrigation.
Clogging free for the nursing solution of hydroponics.
It is available to irrigate vast area at same time with low volume.
Superior durability with raw material of chemical-proof and anti-ultraviolet rays.
Additional in sert of the high-technology dripper inside the hose.
Preventing over moisture in the air and controlling appearance of harmful insects in the greenhouse.



We can supply complete irrigation system:

1. Water pump

2. Filters, such as screen filter, disc filter, centrifugal filter

3. Venturi injector from 3/4 to 2

4. PVC pipe and PE pipe

5. Drip line and drip tape

6. PVC valves and PP connectors

Complete system:

Drip irrigation system is one of the simple irrigation system ,but it also included many other equipment likes :Proportional injector;Button Drip:sprinkler:Line Flush Valve:FE Hose;PVC Hose;Drip tape and accessories ;Spraying Hose and Accessories.

FE flat Hose:

PE pipe has the advantages of quick installation, no rust, no scaling, convenient maintenance and so on. It is widely used in irrigation system.φ16,φ20,φ25,φ32,φ40,φ50,φ63 are the common specification.

Drip Arrow:

Drop Arrow applied to soiless culture ,nursery seeding,Potted planting,greenhouse seedbed. They can divided into many types,such as :straight arrow,curved arrow,Single arrow, double arrow and four arrow and so on.

Sprinkler irrigation is by means of water pump and pipeline system or the difference of natural water source, to spray water with certain pressure into the air, dispersed into small water droplets or form mist to land on plants and on the ground. Sprinkler irrigation is suitable for almost all dry crops, such as cereals, vegetables, fruit, edible mushrooms, herbs and so on. Both for plain, also apply to mountain,both for strong permeability of the soil, but also for the weak soil permeability. Not only can irrigate crops to be irrigated gardens, flowers, grass, it can also be used to spray fertilizer, pesticides, frost, heatstroke, cool and dust.

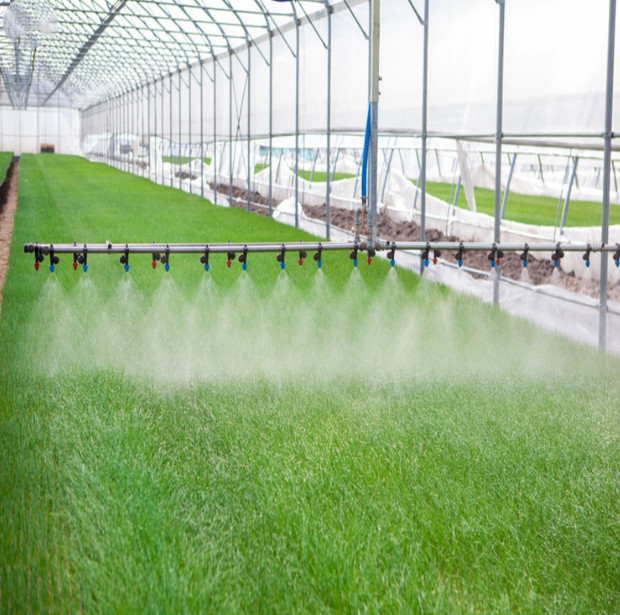

1587879644(1)1587879696(1)
