Multi-span PO/PE Film Greenhouse

Availability:
Inquire

Products Description

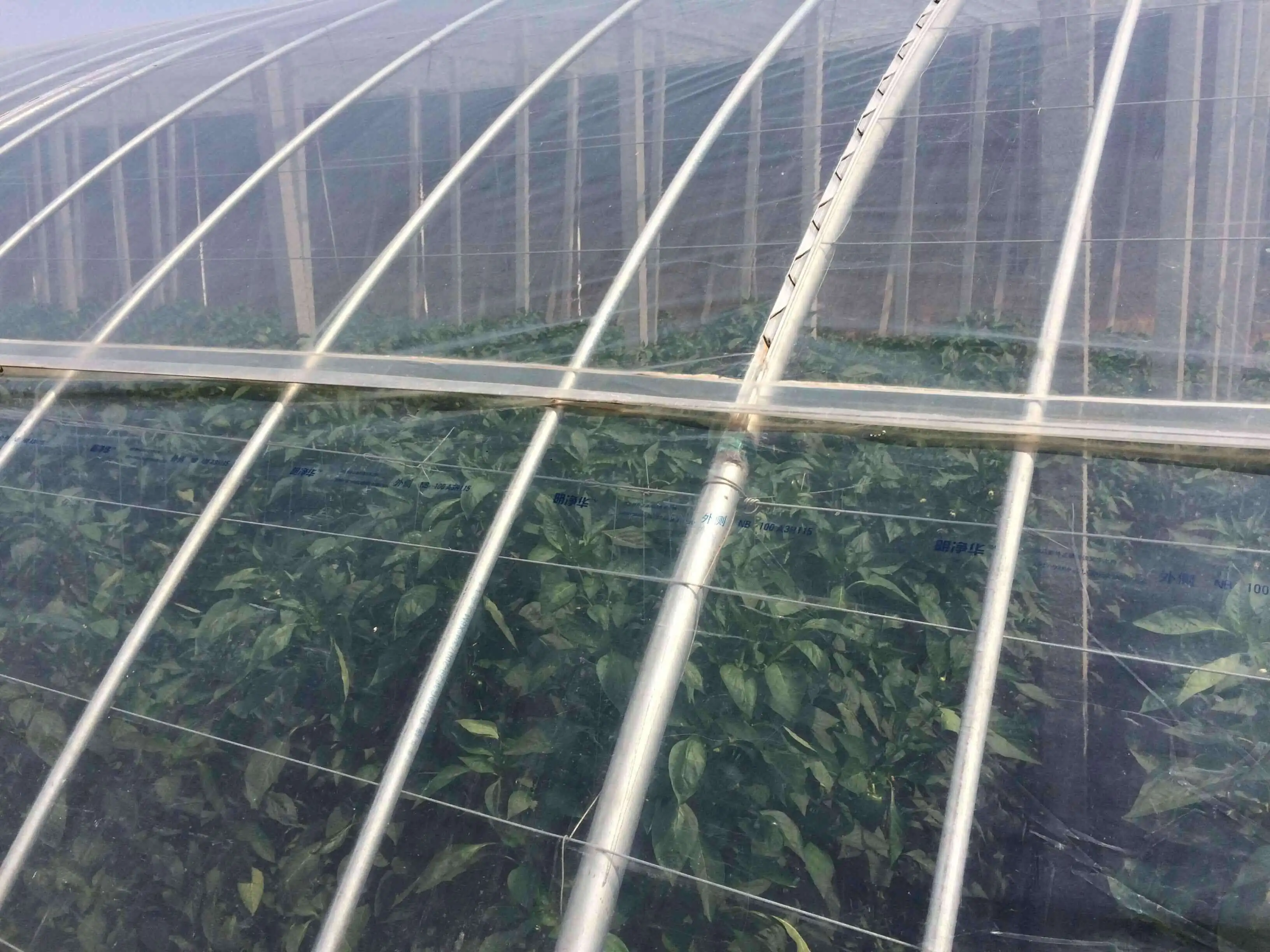

Multi-span Gothic/Arch Greenhouse
Multi-span film greenhouse is a kind of economic greenhouse, suitable for most crops and climates. It is popular among growers because of its beautiful arc-shaped and low cost. The arched roof is beautiful designed, and the sight is smooth. The amount of steel used in the structure is relatively small, and the thermal insulation performance is good. The manufacturing cost is relatively low.
Product Paramenters
HUIJING MULTI-SPAN GREENHOUSE


Basic Parameters
Wind Load
0.3KN/m²
Snow Load
0.25KN/m²
Dead load
10kg/m²
Maximum drainage capacity
140mm/h

Specifications
Span Width
6 - 12m or customized
Column Spacing
4.0m, 6.0m, 8.0m or customized
Gutter Height
3.0m - 6.0m or customized
Steel Structure
Hot dip galvanized steel tubes
Covering Material
PO/PE film, polycarbonate or glass


Greenhouse Systems
Ventilation System
Shading System
Cooling System
Heating System
Irrigation & Fertilizing System
Seedbed System
Hydroponics System
Lighting system
Automatic Control System
Other customized equipment
We will make design proposal as customers specific requirements.
Greenhouse Systems
Steel Structure
High quality hot-dip galvanized steel structure, Zinc-coating 275g/m2, service life over 20 years. All steel materials are field-assembled, no secondary processing required. The galvanized connectors and fasteners are not rusted for 20 years.
Covering Materials

PO/PE/EVA film covering

80-200 micron, anti-drip, anti-UV, quality assurance for 3-5 years.

Polycarbonate sheet

6mm-12mm thickness, double layer hollow, anti-UV, anti-drip, good thermal insulation performance, excellent strength, rigidity, hardness, toughness and crack resistance, quality assurance for 10 years.

Glass

Single-layer tempered glass or hollow glass, beautiful appearance, good light transmittance performance, long service life, reasonable maintenance and practical service life of more than 30 years.
Optional Systems

Outside Shading System

The main function of the system is to cool and shade in the summer, so that the sunlight diffuses into the greenhouse to ensure that the crop is protected from glare of the sun.

Anti-UV, anti-hail, reducing damage to the top of the greenhouse

Inside Shading &Insulation System

Anti-fog and anti-drip
Energy-saving and insulation
Water conservation
The curtains are divided into two types, ventilated and insulated. Different types and shading rate of curtains are used as needed. In order to increase the insulation effect in the greenhouse, double inside shading nets can be used.
Cooling System - Cooling Pad
The cooling of greenhouse is achieved by the principle of evaporation and cooling of water. The special made cooling pad can ensure that the water evenly wets the entire cooling pad wall. When the air penetrates the cooling pad medium, it exchanges heat with the water vapor on the surface of the cooling pad to achieve humidification and cooling of the air.

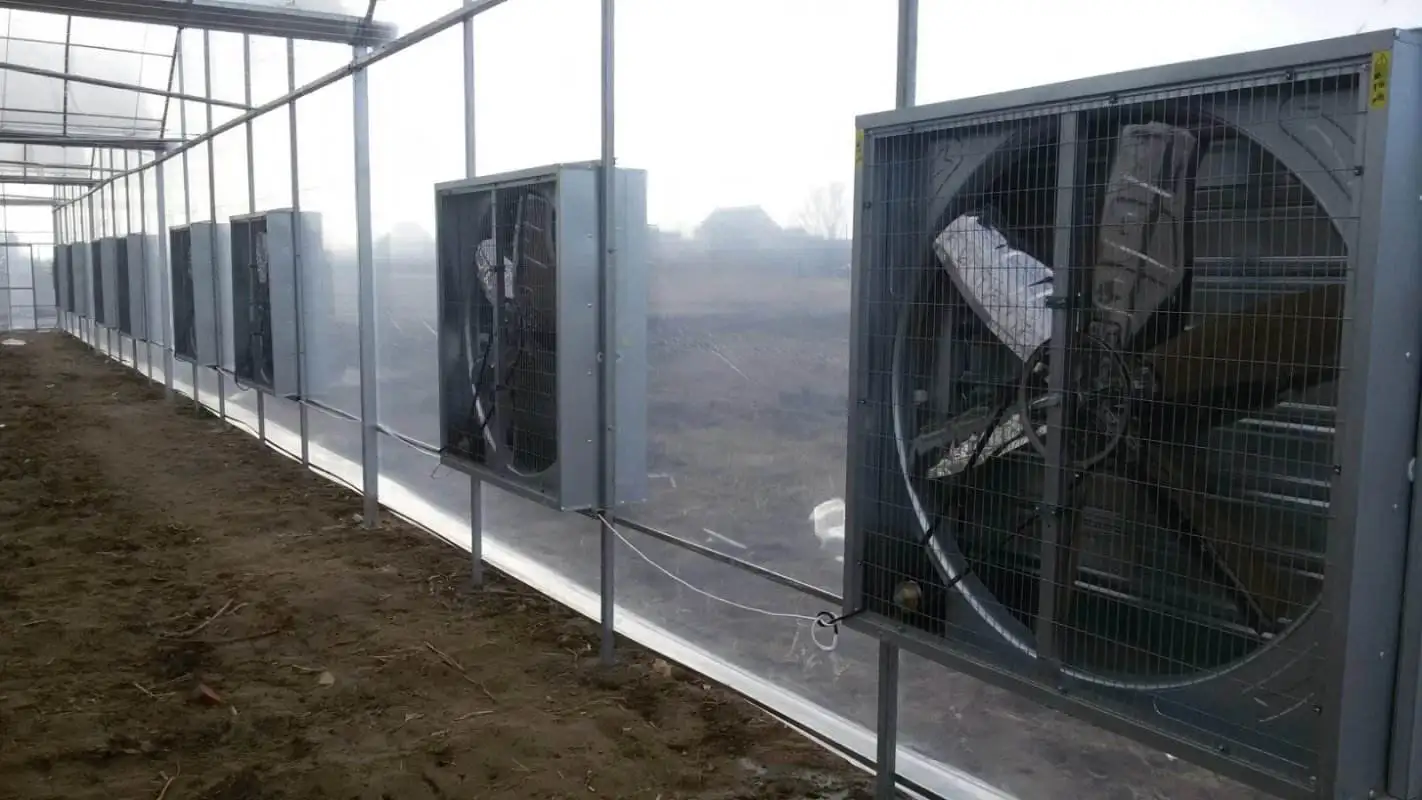

Cooling System - Cooling Fan
Size: 1380x1380x400m Power: 1100 w Voltage: 380V, 50Hz, PH1 Air volume: 44000m3/h Noise 60 decibels Hot-dip galvanized steel frame,  stainless steel fan blade
Heating System - Boiler Coal/Gas/Diesel-fired
Heating System - Fan Heater
Heating System - Spiral Finned Tubes

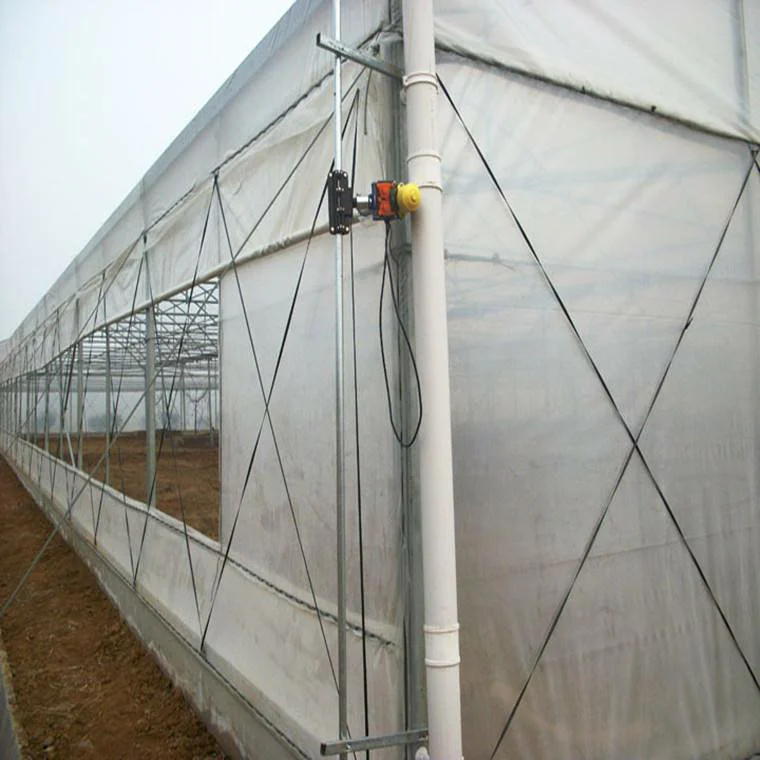

Film Rolling Side Ventilation
Electric or Manual
Film Rolling Roof Ventilation
Electric or Manual
Open Roof Ventilation
Single or Double


Irrigation & Fertilizer System

Hydropics System
Bench System
Intelligent Control System
Other Greenhouse Systems & Equipment
Product packaging



1. Steel tubes are nuded and tied up by wires. 2. Accessories and parts are packed in bags and cartons. 3. All goods are loaded in containers and transported by ship or train


FAQ

Q: Are you trading company or manufacturer? A: We have own steel structure production and processing factory, will offer competitive price with high quality products. Q: What is the purchasing process? A: Customer supply project information - HUIJING supply design proposal and quotation - Design and quotation confirmation - Customer visit - Order confirmation - Production - Shipments - Installation guidance Q: How to confirm products quality? A: Welcome customers to visit our factory. Q: How to install and assemble the greenhouses? A: Our greenhouse is prefabricated, easy to install. We can supply installation instruction or on-site installation technical guidance.
Why Choose Us
1.Professional technical, production, sales team for more than 10 years 2.Rich design and engineering experience in both domestic and foreign markets 3.Own steel structure production and processing factory, with competitive price and quality products. 4.Complete pre-sales and after-sales service with on-line and on-site technical assistance.
