Wiggle Wire Poly Fastening System Base Channel for Agriculture Greenhouse Accessories

Size: Small
Cover Material: Lock Channel With Wiggle Wire
Wiggle Wire Diameter: 2.0mm/2.3mm
Outside: Full Plastic Coating
Other: Accept Customization
Lock Channel Thickness: 0.7mm/0.9mm/1.0mm/1.5mm/1.5mm-double
Lock Channel Zinc Coating: 80g/m2 120g/m2 275g/m2
Model Number: 2mm/2.3mm
Steel Wire Type: Black Steel Wire
Color: Black/Green/Blue
Lock Channel Length: 2m/3m/4m/6m
Lock Channel Width: 28mm/30mm/33mm/31.5mm/76mm
Packaging Details: CARTON WITH PALLET

  • HUIJING GREENHOUSE

1587633249(1)

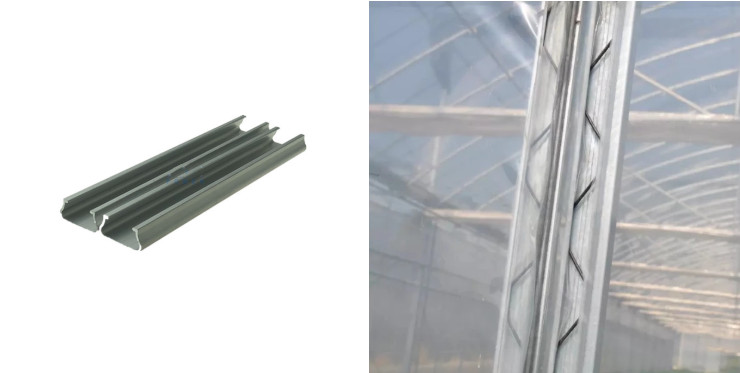

Product Name: Greenhouse Film Lock Profile/Lock Channel
Product Material:Galvanized/Alumunium Alloy
The lock profile could help you to fix the greenhouse covering film,shade curtain and mesh net, it could increases the service life of the greenhouse covering films.

Product Characristics:

1. Easy and fast to install
2. Strong wind resistance
3. Strong anti-corrosion
4. Increase the service life of greenhouse covering film

GALVANIZED Steel Lock Channel/Profile details:
Thickness
0.7mm
0.9mm
Specification
30mm(W)*11mm(H)
31.5mm(W)*13.5mm(H)
Length
2m/3m/4m/6m
2m/3m/4m/6m
Zinc Coating
80g/m2; 120g/m2
275g/m2

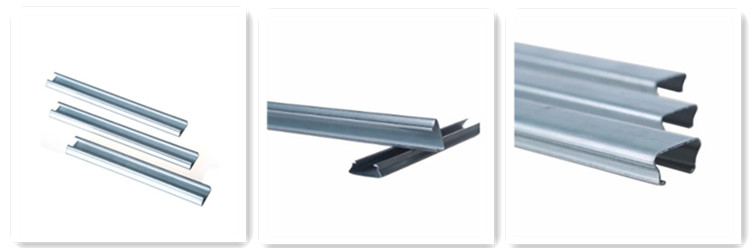

ALUMUNIUM ALLOY Lock Channel/Lock Profile details:
Thickness
1.0mm
1.0mm
1.5mm
1.5mm
1.5mm-double
Width
28mm
30mm
33mm
31.5mm
76mm
Surface Treatment
Oxidation
Oxidation
Oxidation
Oxidation
Oxidation
Length
3m/4m/6m
3m/4m/6m
3m/4m/6m
3m/4m/6m
3m/4m/6m

1587633372(1)

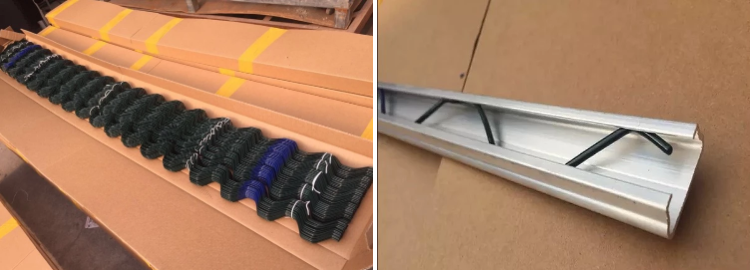

Product Name: Greenhouse Film Zigzag wire used with Lock channel
Product Material: Black steel/Galvanized
The lock profile and wiggle wire could help you to fix the greenhouse covering film,shade curtain and mesh net, it could increases the service life of the greenhouse covering films.

Product Characristics:

1. Easy and fast to install
2. Tightly secures poly film or shade cloth to greenhouse or other structures;
3. Thicker and round ends can protect poly film;
4. Made of galvanized steel wire or black steel wire with full plastic coating, or both end coating.

Wiggle wire parameters:
Diameter
2.0mm
2.3mm
2.3mm
2.3mm
Material
Black Steel Wire
Black Steel Wire
Galvanized Steel Wire
Galvanized Steel Wire
Type
Full Plastic Coating
Full Plastic Coating
Full Plastic Coating
Full Plastic Coating
Color
Black/Green/Blue
ACCEPT CUSTOMIZATION

1587633513(1)_副本1587633513(1

Our Advantages:

1. Strong anti-corrosion

2. Less transfer of heat to the plastic

3. Working with 2-3pcs of wiggle wires, can be inserted in 0.8mm thickness

4. Designed with smooth edges to avoid any damage to plastic covering

5. Flat Bottom, Long service life.

1587633820(1)1587633953(1)_副本1587634230(1)
