VENLO POLYCARBONATE SHEET COVER GREENHOUSE

Views:2     Author:Site Editor     Publish Time: 2020-12-30      Origin:Site

VENLO POLYCARBONATE SHEET COVER GREENHOUSE

微信图片_202012301446467


Main configuration of greenhouse: including hot-dip galvanized main steel framework, electric external shading system, electric internal shading system, electric internal thermal insulation system, electric top opening window system, wet curtain fan ventilation and cooling system, electric side opening window system, dew collection system, PVC pipe drainage system, aluminum alloy connection system, 8 mm anti fog drop hollow PC sunlight board on top, 5 + 9A + 5 mm hollow tempered glass on all sides Automatic control system, greenhouse gate system, power distribution system.

The following is a brief introduction of the project:


Greenhouse specification: greenhouse span: 12.0 m span, total 5 spans, total span 64.0 m; greenhouse Bay: 8.0 m span, total 6 spans, total Bay 52.0 m; greenhouse eaves height: 6.0 m, total height: 7.5 m; greenhouse total area: 3328.00 square meters.


The list of hot-dip galvanized steel skeleton materials for the main body of the project is as follows:


Wenluo type triple peaked greenhouse, the main framework of mold production, surface hot-dip galvanizing antirust treatment.


Main column: 150 × 150 × 5.5mm, wind column: 150 × 150 × 5.5mm;


Side auxiliary column: 120 × 120 × 5.5mm;


Cross beam around: 50 × 50 × 2.0 mm hot-dip galvanized square tube;


12.0 m lattice beam: 100 × 50 × 3.0 mm hot-dip galvanized rectangular square tube, about 12000 mm in length;


8.0 m lattice beam: 100 × 50 × 3.0 mm hot-dip galvanized rectangular square tube, about 8000 mm in length;


4.0 m lattice beam: 100 × 50 × 3.0 mm hot-dip galvanized rectangular square tube, about 4000 mm in length;

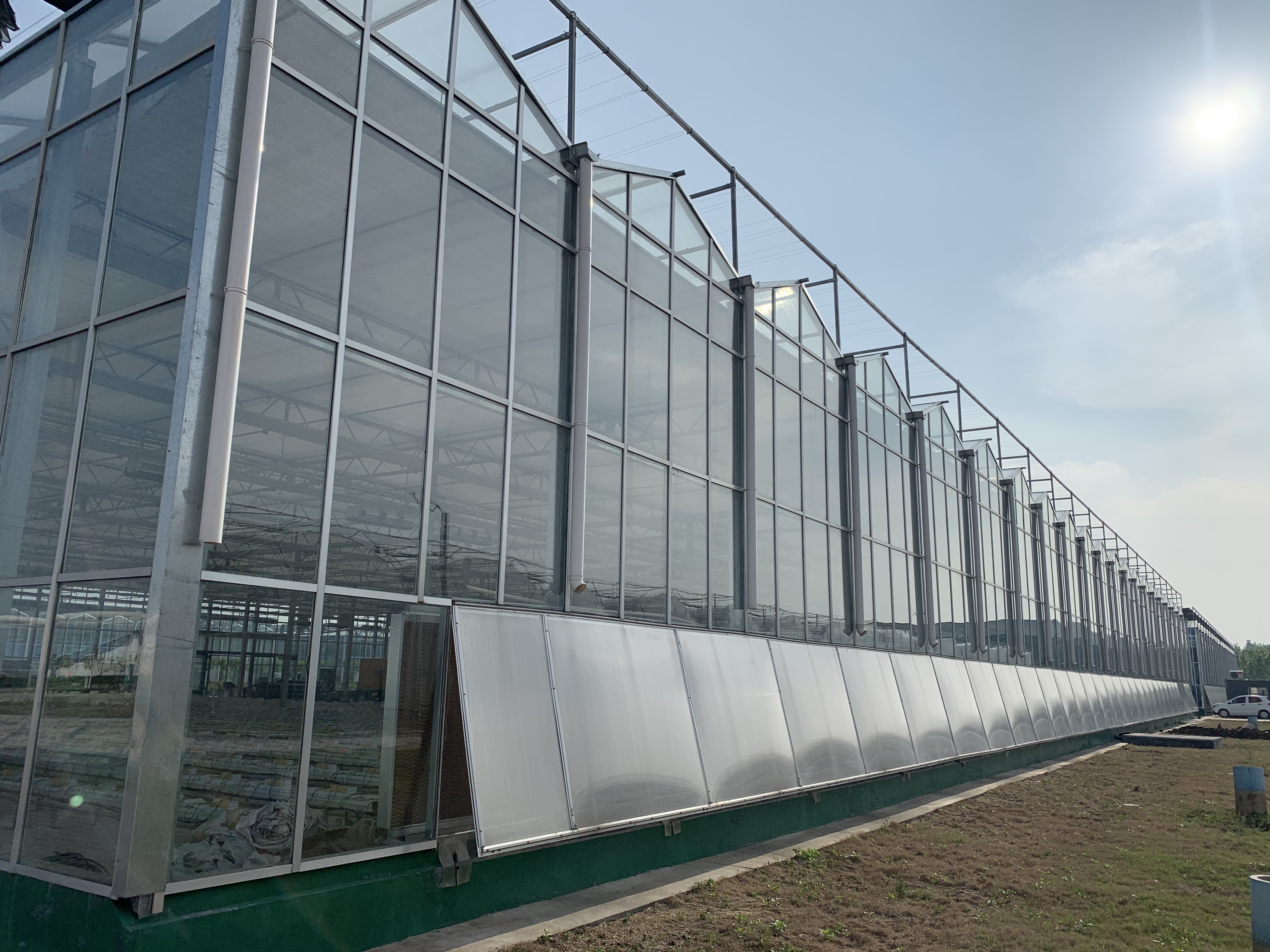

微信图片_202012301446464


Water tank: H = 2.0 mm, l = 3995 mm, the width is 375 mm, and the galvanized steel plate is bent;


Top purlin: 50 × 30 × 2.0 mm hot-dip galvanized rectangular square tube, 1965 mm in length;


Herringbone beam: 50 × 30 × 2.0 mm hot-dip galvanized rectangular square tube, with longitudinal spacing of 2.0 m and length of 2065 mm.


External sunshade column: 50 × 50 × 2.0 mm hot dip galvanized rectangular square tube


External sunshade beam: 50 × 50 × 2.0 mm hot dip galvanized rectangular square tube


External sunshade Rail: 50 × 30 × 2.0 mm hot dip galvanized rectangular square tube


External sunshade driving curtain rod: aluminum alloy material

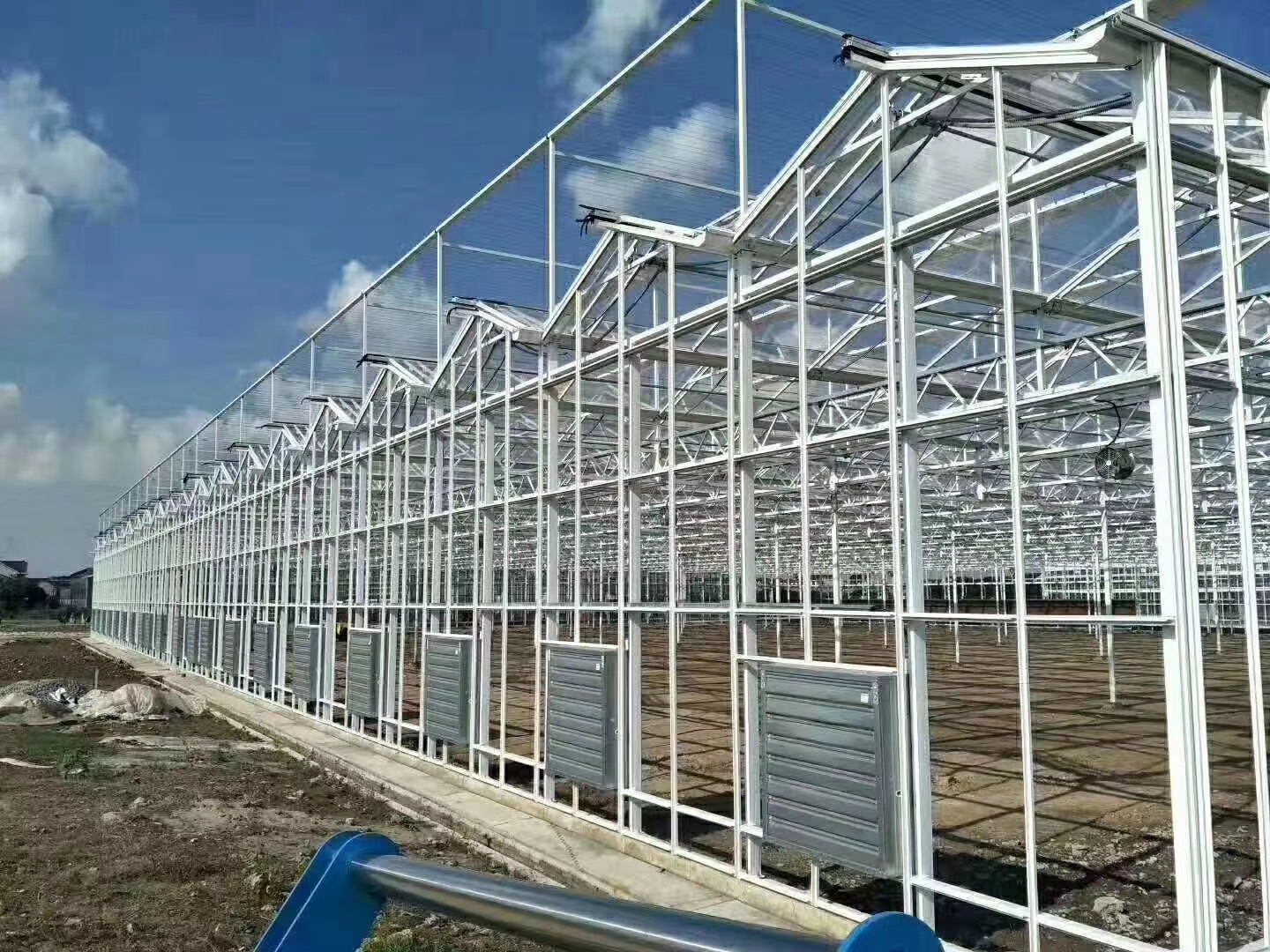

微信图片_20201230144646



HUIJING GREENHOUSE is located in Weifang, Shandong Province, China, which has focused on greenhouse design, manufacturing and construction for more than 20 years.
Main products HUIJING supplied,
 + Film (PO/PE/EVA, etc.) Greenhouse
 + Polycarbonate Greenhouse
 + Glass Greenhouse
 + Greenhouse Systems & Equipment
HUIJING GREENHOUSE already cooperate with our customers from domestic and international market in building hundreds of greenhouses.
The mission of HUIJING GREENHOUSE is to offer quality greenhouse at competitive price, followed by the best service to our customers.
Warmly welcome customers from all over the world come to visit us.
