Single-span Poly Tunnel Greenhouse with PO/PE/EVA Film Covering

Availability:
Products Description

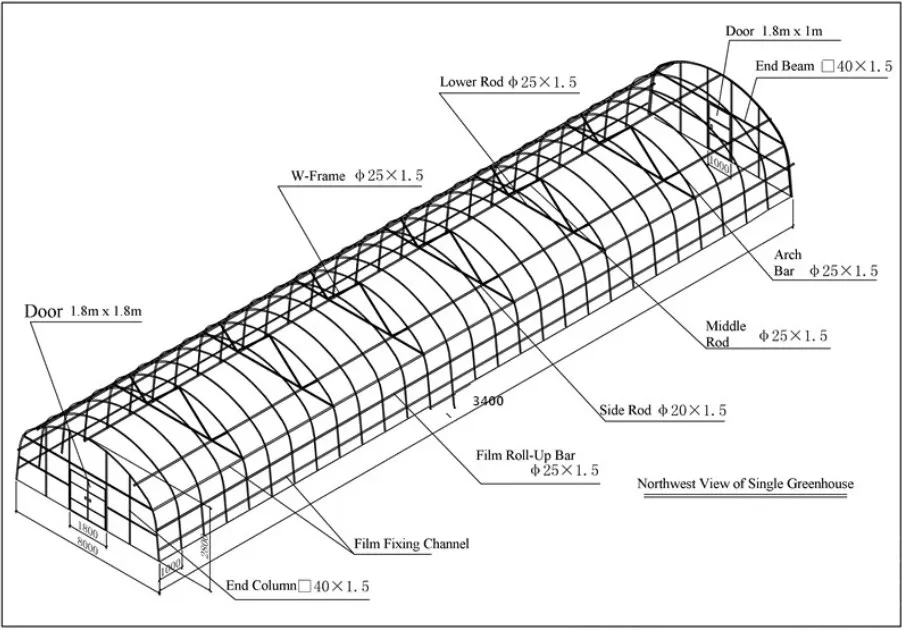

Tunnel / Single-span film greenhouse

Tunnel greenhouse is also named Single-span Greenhouse, Arched Greenhouse or Hoop Greenhouse.

1. Span width 6m-12m, it can be

designed as customer’s requirement, different climatic conditions or crops planting.
2. The main structure of the greenhouse
adopts hot-dip galvanized steel pipes, connecting with hot-dip galvanized bolts, good anti-corrosion performance.
3. The covering
material is PO film, PE film or polycarbonate sheet.
4. According to requirements, side ventilation system, outside shading
system, cooling system, heating system, Irrigation system, automatic control system, hydroponic system, lighting system, can be added in the greenhouse.
Product Paramenters
HUIJING TUNNEL / SINGLE-SPAN GREENHOUSE

Specifications
Span Width
6 - 12m or customized
Arch Spacing
1.0m, 1.5m, 2.0m or customized
Top Height
2.5m - 6.0m or customized
Steel Structure
Hot dip galvanized steel tubes
Covering Material
PO/PE film, polycarbonate


Greenhouse Systems
Ventilation System
Shading System
Cooling System
Heating System
Irrigation & Fertilizing System
Seedbed System
Hydroponics System
Lighting system
Automatic Control System
Other customized equipment
We will make design proposal as customers specific requirements.
Greenhouse Systems
Steel Structure
High quality hot-dip galvanized steel structure, Zinc-coating 275g/m2, service life over 20 years. All steel materials are field-assembled, no secondary processing required. The galvanized connectors and fasteners are not rusted for 20 years.
Covering Materials

PO/PE/EVA film covering

PO/PE/EVA film covering

Polycarbonate sheet

6mm-12mm thickness, double layer hollow, anti-UV, anti-drip, good thermal insulation performance, excellent strength, rigidity,
hardness, toughness and crack resistance, quality assurance for 10 years.
Optional Systems
Cooling System - Cooling Pad
The cooling of greenhouse is achieved by the principle of evaporation and cooling of water. The special made cooling pad can ensure that the water evenly wets the entire cooling pad wall. When the air penetrates the cooling pad medium, it exchanges heat with the water vapor on the surface of the cooling pad to achieve humidification and cooling of the air.
Cooling System - Cooling Fan
Size: 1380x1380x400mm Power: 1100 w Voltage: 380V, 50Hz, PH1 Air volume: 44000m3/h Noise 60 decibels Hot-dip galvanized steel frame,  stainless steel fan blade
Manual Side Ventilation
Electric Side Ventilation


Irrigation & Fertilizer System

Bench System
Product packaging

1. Steel tubes are nuded and tied up by wires. 2. Accessories and parts are packed in bags and cartons. 3. All goods are loaded in containers and transported by ship or train

FAQ

Q: Are you trading company or manufacturer? A: We have own steel structure production and processing factory, will offer competitive price with high quality products. Q: What is the purchasing process? A: Customer supply project information - HUIJING supply design proposal and quotation - Design and quotation confirmation - Customer visit - Order confirmation - Production - Shipments - Installation guidance Q: How to confirm products quality? A: Welcome customers to visit our factory. Q: How to install and assemble the greenhouses? A: Our greenhouse is prefabricated, easy to install. We can supply installation instruction or on-site installation technical guidance.
Why Choose Us
1.Professional technical, production, sales team for more than 10 years 2.Rich design and engineering experience in both domestic and foreign markets 3.Own steel structure production and processing factory, with competitive price and quality products. 4.Complete pre-sales and after-sales service with on-line and on-site technical assistance.
